Install and  Configure  Saslauthd
Sasl stands for Simple Authentications and Security Layer.   This is the application to use for SMTP AUTH.
Version 2.3, and greater of Postfix supports SMTP AUTH through Dovecot SASL.

Ubuntu Mail server Course
Secure Connections
Postfix with TLS
Dovecot with Sasl
SMTP AUTH
Secure Client

Install saslauthd
sudo apt-get install libsasl2 libsasl2-modules sasl2-bin

The mail server postfix does a chroot so it can’t communicate with saslauthd.   As a result you must make these modifications.

rm -r /var/run/saslauthd/
mkdir -p /var/spool/postfix/var/run/saslauthd
ln -s /var/spool/postfix/var/run/saslauthd /var/run
chgrp sasl /var/spool/postfix/var/run/saslauthd
adduser postfix sasl

You will need to edit saslauthd found in /etc/default/saslauthd.
Set the daemon so it with start with this setting:
START=yes

Change the location of saslauthd to the chroot environment of postfix by changing the OPTIONS..
OPTIONS=”-c -m /var/spool/postfix/var/run/saslauthd”

Now set saslauthd so it will  use the shadow file.

saslauthd -a shadow

Once you change the location of saslauthd you will not be able to use the testsaslauthd command.

The /etc/postfix/sasl/smtpd.conf file looks like this:
pwcheck_method: saslauthd
mech_list: PLAIN LOGIN

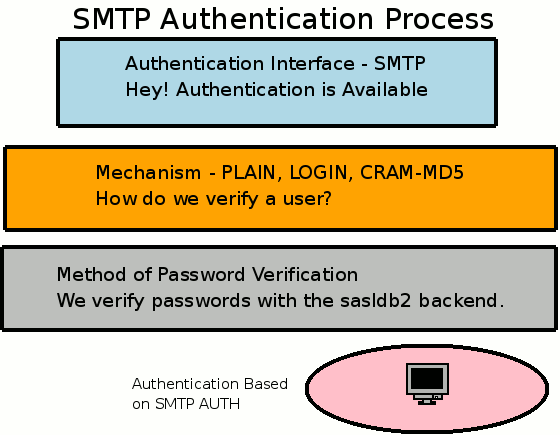

Once you have this in place you are able to use SMTP Authentication.  In the example you can see that SMTP Authentication has three parts; the authentication interface, the mechanism and the method of verification.  Each of these parts has many options, thus the massive confusion that surrounds this.  In the example for this tutorial the mechanism is PLAIN and the method of verification is dovecot.

smtp1a

Remote Client Using TLS and SMTP AUTH
Here are log examples of what you should see when a remote user connects with TLS and SMTP AUTH.  You can see in the process the sasl connection and verification as well as the TLS connection.

Oct 28 13:25:26 ub910s postfix/smtpd[5197]: connect from unknown[192.168.5.103]
Oct 28 13:25:27 ub910s postfix/smtpd[5197]: 07A0B5F9F: client=unknown[192.168.5.103], sasl_method=PLAIN, sasl_username=mike
Oct 28 13:25:27 ub910s postfix/cleanup[5203]: 07A0B5F9F: message-id=<4AE898CA.6060205@example.com>
Oct 28 13:25:27 ub910s postfix/qmgr[5193]: 07A0B5F9F: from=<mike@example.com>, size=507, nrcpt=1 (queue active)
Oct 28 13:25:27 ub910s postfix/smtpd[5197]: disconnect from unknown[192.168.5.103]
Oct 28 13:25:27 ub910s dovecot: imap-login: Login: user=<mike>, method=PLAIN, rip=192.168.5.103, lip=192.168.5.98, TLS
Oct 28 13:25:28 ub910s postfix/smtp[5204]: 07A0B5F9F: to=<some_email@gmail.com>, relay=gmail-smtp-in.l.google.com[209.85.216.20]:25, delay=1.7, delays=0.06/0.03/0.63/0.94, dsn=2.0.0, status=sent (250 2.0.0 OK 1256757929 40si3632867pxi.87)
Oct 28 13:25:28 ub910s postfix/qmgr[5193]: 07A0B5F9F: removed

Network Port Check
By running the command netstat you will be able to check to see if your server is listening on the correct ports.  You will want port 993 for IMAPS, port 25 for your TLS connection to send mail and port 22 is there for an SSH connection to work on your server.

netstat -aunt
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address           Foreign Address         State
tcp        0      0 0.0.0.0:993             0.0.0.0:*               LISTEN
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN
tcp        0      0 0.0.0.0:25              0.0.0.0:*               LISTEN

If you are interested in the Postfix Manual you can purchase for $34.95 which illustrates many more options with Postfix.
